System Update:

4" Hose Bus Vacuum System - Norwalk, CA

System Description:

Technical Information:

Number of buses vacuumed:	22
Number of bus lanes:	1
Total vacuuming horsepower:	25 hp
Number of hoses per lane:	1
Hose description:	60' of 4" hose
Hose replacements since start-up:	1
Length of time to vacuum one bus:	3 minutes 20 seconds
Sound pressure 10 feet in front of collector:	76 Dba
System vacuum pressure:	46 inches of water

System Report:

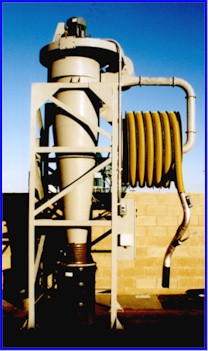

The City of Norwalk project engineer contacted us in March of 1994 and requested assistance in designing a hose bus vacuum system for their new Metro link Station. Robertson Air Systems responded and utilized our over 40 years of air handling and 11 years bus vacuuming system experience to design a state-of-art 4" Hose Bus Vacuum System.

We had closely monitored hose style bus vacuum systems for many years and observed that the overwhelming majority had unfortunately been failures for the following reasons:

No user friendly "finger touch" feed/rewind hose handling control from inside the bus. Mechanical failure of light duty hose reels and counter balance systems. Hose plugging and collapsing. Multiple wrapping of hose around the hose reel contributed to hose collapsing. The hose was sized too small for bus trash.

The Robertson Air Systems 4" hose bus vacuum system designed and installed for the City of Norwalk Metro link Station over came all of the above difficulties and has operated virtually flawlessly since the June 1995 start-up.

For a first hand report, we urge you to contact the following:

Mr. Ruben Cueto
City of Norwalk
12700 Norwalk Boulevard
Norwalk, CA 90651-1030
(310) 929-5522

Please do not hesitate to contact us if you need more information about the 4" Hose Bus Vacuum System, or if you have any questions.
